HEATING STORAGE HOT OIL SUPPLY EQUIPMENT

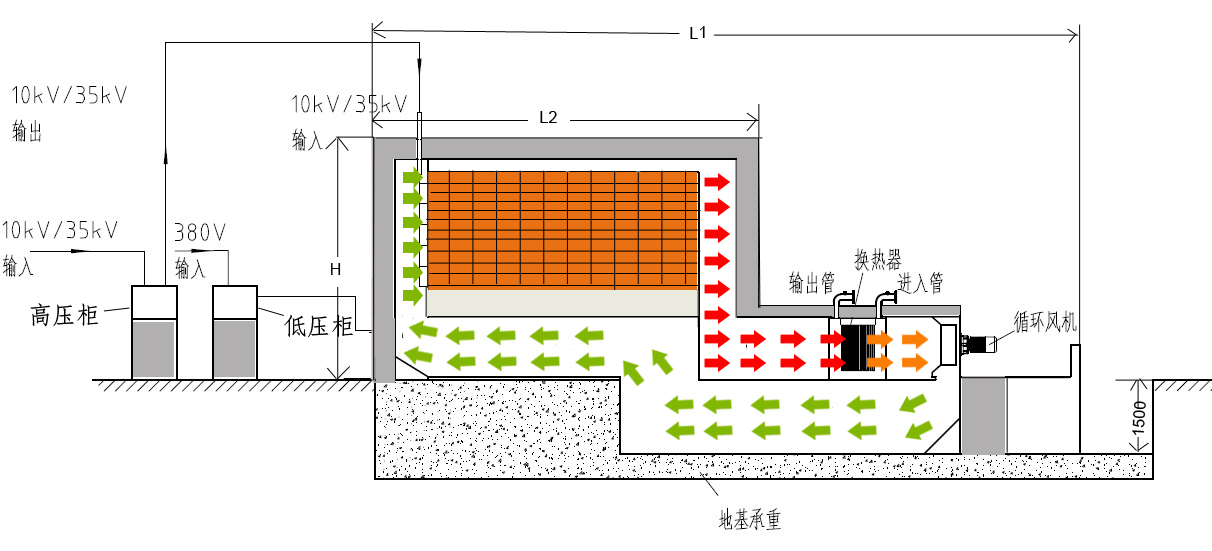

As shown in the schematic diagram, the energy storage heating device uses cheap electrical energy or wind energy generated during the low ebb periods at night to convert electrical energy into high-temperature heat energy and store it in the heat storage body of the device.
When using heat, the fan operates to allow air to flow through a heat storage boiler
The heat in the heat accumulator is exchanged into high-temperature hot air, which passes through the heat exchanger and is added with heat transfer oil for use by the heat consuming unit.
◆High temperature heat storage
Solid alloy heat storage up to 750 ℃ has broken the temperature limit of high temperature heat storage and is still in a safe state.
◆ High efficiency
The unique thermal insulation material is used for insulation, with minimal heat loss and a comprehensive efficiency of over 95%.
◆ Small size
The volume is only 10% - 14.3% of that of ordinary electric water storage boilers, reducing the floor area.
◆ Fully automatic control
No need for personnel to take care of, automatic heating during low periods, and heat release at any time and temperature when needed.
◆ "0" discharge
"0" emission, "0" pollution, pure resistance heating, not affected by climate.
Energy storage and heat transfer oil devices are widely used in industrial drying fields, such as printing and dyeing, canning, spraying, and other drying processes.
Energy storage and heat transfer oil devices can also be widely used in industries such as food, automobile manufacturing, printing, chemical industry, paper making, rubber, medicine, petrochemical, metallurgy, and so on.
