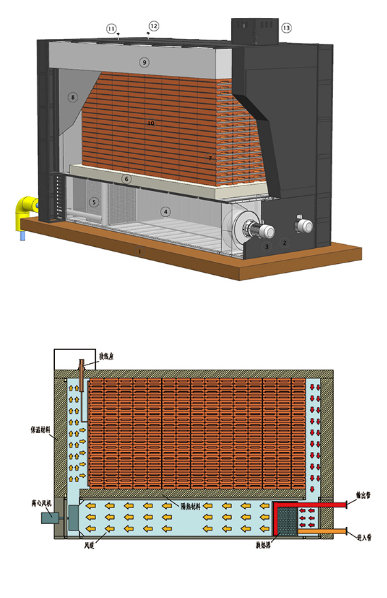

1 Concrete base
2 Equipment housing
3 Hot air circulating fan
4 Hot air circulating air pipe
5 Air water heat exchanger
6 Thermal insulation materials
7 Electric heater
8Heat accumulator housing
9 High temperature thermal insulation
10 Magnesite heat storage core
11 Overtemperature Limiter for the Heat Storage Core
12 Temperature sensor
13 Power supply access device
15 Climate sensor
Energy storage heating devices use cheap electrical energy or wind energy generated during the low ebb hours of the night to convert electrical energy into high-temperature heat energy and store it in the heat storage body of the device. When using heat, the fan operates to allow air to flow through the heat storage body, exchanging heat from the heat storage body into high-temperature hot air. The high-temperature hot air passes through a heat pipe heat exchanger and heats water. The heating unit uses hot water to achieve heating.
◆ High temperature heat storage
Solid alloy heat storage up to 750 ℃ has broken the temperature limit of high temperature heat storage and is still in a safe state.
◆ High efficiency
The unique thermal insulation material is used for insulation, with minimal heat loss and a comprehensive efficiency of over 95%.
◆ Small size
The volume is only 10% - 14.3% of that of ordinary electric water storage boilers, reducing the floor area.
◆ Low operating costs
Fully utilize low valley price electricity, solar energy, or wind energy at night to generate electricity and work. The operating cost of the same heat is 40-50% of the operating cost of the direct heating electric boiler; 50%~60% of natural gas; 35% of diesel fuel.
◆ Fully automatic control
No need for personnel to take care of, automatic heating during low periods, and heat release at any time and temperature when needed.
◆ "0" discharge
"0" emission, "0" pollution, pure resistance heating, not affected by climate.
◆ Absolute safety
Normal pressure operation, complete protection devices, safe and reliable.
◆ Saving transformer investment
The 10KV/35KV energy storage heating device is directly connected to high-voltage electricity, saving customers' investment in transformers.
◆ 100% elimination of waste air
The electricity generated by unstable wind power can be converted into thermal energy, which can be turned on and off at any time to stabilize the grid load.
