HEATING STORATGE STEAM GENERATING EQUIPMENT

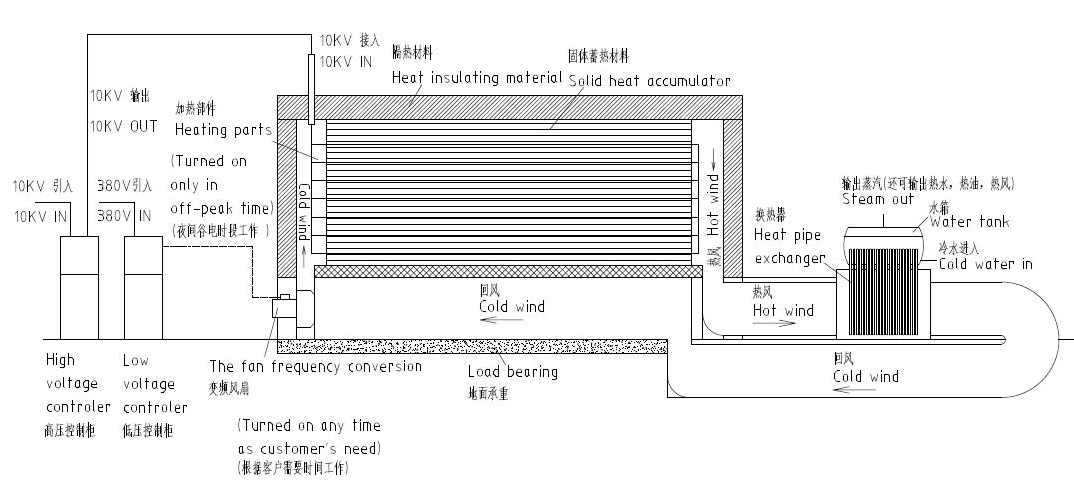

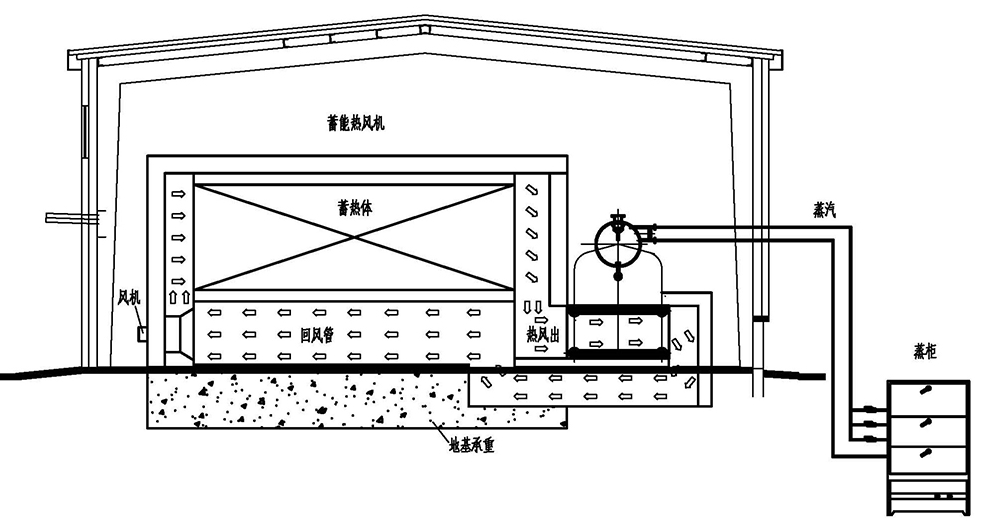

The energy storage steam generation device uses cheap electrical energy during the low ebb period at night to convert electrical energy into high-temperature heat energy and store it in the heat storage body of the device. When using heat, the fan operates to allow air to flow through the heat storage body, exchanging heat from the heat storage body into high-temperature hot air. After passing through a heat pipe heat exchanger, high-temperature hot air heats the water in the upper steam drum, generating steam for use. If superheated steam is required, a superheater can also be installed on the pipeline to reheat the generated steam through hot air to meet the high-temperature steam output requirements.
◆ High temperature heat storage
Solid alloy heat storage up to 750 ℃ has broken the temperature limit of high temperature heat storage and is still in a safe state.
◆ High efficiency
The unique thermal insulation material is used for insulation, with minimal heat loss and a comprehensive efficiency of over 95%.
◆ Small size
The volume is only 10% - 14.3% of that of ordinary electric water storage boilers, reducing the floor area.
◆ Low operating costs
Fully utilize low valley price electricity, solar energy, or wind energy at night to generate electricity and work. The operating cost of the same heat is 40-50% of the operating cost of the direct heating electric boiler; 50% - 60% of natural gas; 35% of diesel fuel.
◆ Fully automatic control
No need for personnel to take care of, automatic heating during low periods, and heat release at any time and temperature when needed.
◆ "0" discharge
"0" emission, "0" pollution, pure resistance heating, not affected by climate.
◆ Absolute safety
Normal pressure operation, complete protection devices, safe and reliable.
The energy storage steam generation device has a wide range of uses and can be widely used in:
Textile printing and dyeing industry
